| Specifications | BW-A | BW-H | |
| Load Capacity | BW-50: Load 50KG BW100: Load 100KG BW-300: Load 300KG | ||
| Workbench diameter | BW-50:300mm BW-100:380mm BW-300: 500mm | ||
| Drive motor | 57# Step motor 1.2N / 86# Step motor 7.5-12N | ||
| Through hole diameter | BW-50: Through hole 65mm BW-100: Through hole 100mm BW-300: Through hole 170mm | ||
| Tilt Angle | 0-90° adjustable position | ||
| Workbench speed | 0.01-15rpm/customize available | ||
| Use occasions | Manual or semi-automatic welding, cutting, polishing, painting | ||
| Optional | 1. Welding chuck (optional size)
2. Manual gun holder 3. Pneumatic gun holder 7. step drive Welding seam oscillator |
||
|
|
|||

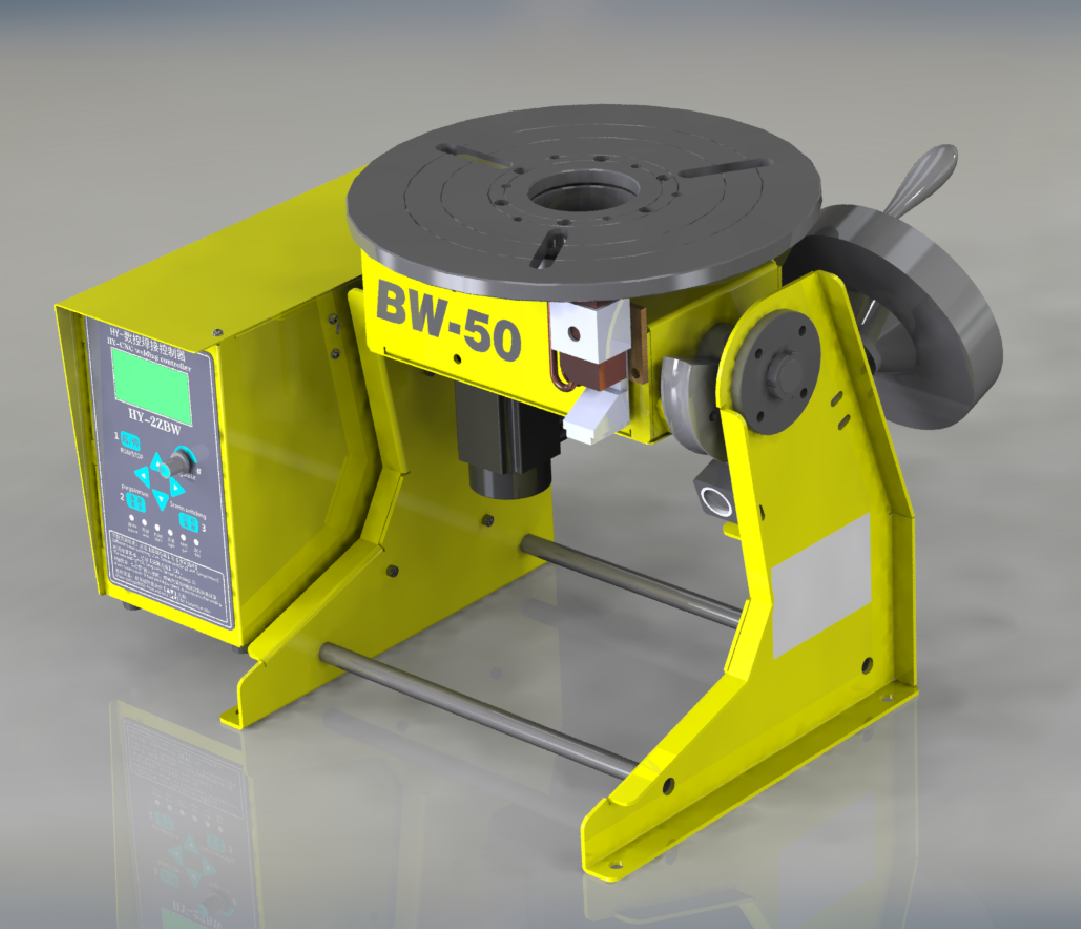

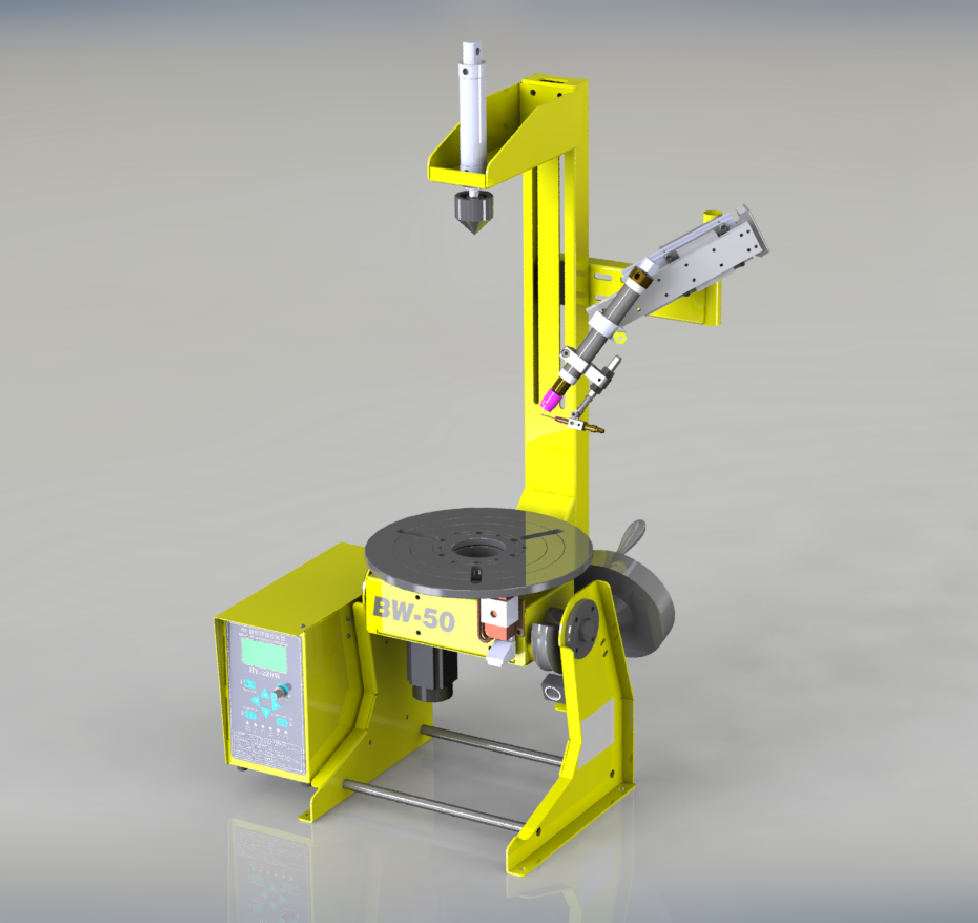

unverisal positioner
BW Unversial positioner
unverisal positioner assists manual or semi-automatic work, not only welding
Modular designed with variety options for different workpieces.
With LCD micro-controller controlled
