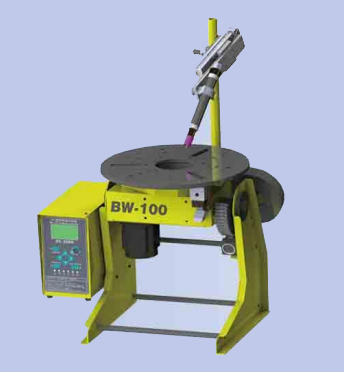

BW-100A2 Unversial positioner

Name: BW-100A2 Unversial positioner
Brand: HUAYAN WELD TECH CO.,LTD
Availability: InStock

unverisal positioner assists manual or semi-automatic work, not only welding

Modular designed with variety options for different workpieces.

With LCD micro-controller controlled

描述
用户评价 (0)

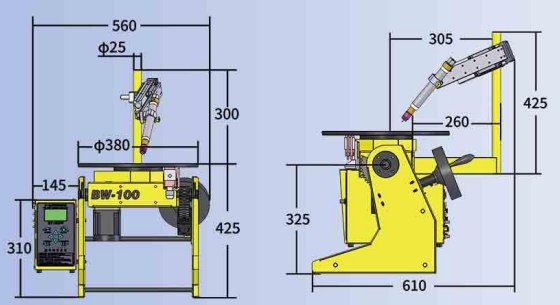

Specifications

BW-100A2

Load Capacity

BW100: Load 100KG

Workbench diameter

BW-100: Flange dia.380mm

Drive motor

86 Step motor 7.5-12N

Through hole diameter

BW-100: Through hole 100mm

Workbench height

BW-100: height 425mm

Tilt Angle

0-90° adjustable position

Workbench speed

0.01-15rpm

Use occasions

Hydrogen arc welding, argon arc welding with cable, gas shielded welding, laser welding, laser welding with cable, plasma cutting, etc.

Standard

(BW-100A2) 100 kg welding positioner, 86 welding stepper motor, through hole 100mm;

Optional

1. Welding chuck (optional size)

2. Manual gun holder (with welding gun microadjust rack)

3. Pneumatic simple gun holder
4.Pneumatic precision 3D microadjust gun holder(with precision 3D microadjust rack)
5. Pneumatic tail top (the distance between the tail top can be adjusted up and down to ensure the concentric rotation of the workpiece)
6. Roller support frame (can provide support for longer workpieces)7. Welding seam oscillator (stepping drive, repeated positioning accuracy 0.04mm)
8. Argon welding cable feeder (stable and uniform wire feeding, sensitive wire withdrawal)
