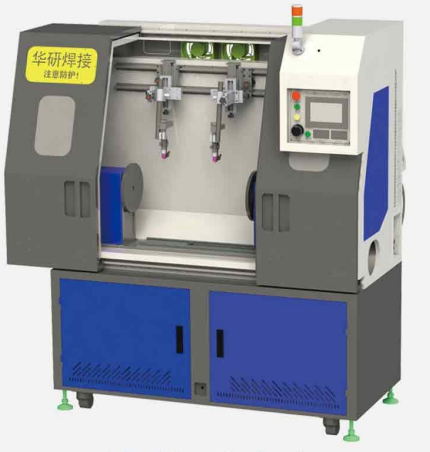

Features:
-
- high-efficiency and high-flexibility with Varity options for different budget auto weld solutions
- Online remote maintenance and troubleshooting, EtherCAT Industrial Ethernet Communication/4G loT.
- Smart phone application operation, and machine state monitoring available
- The equipment supports later upgrade and access to smart factory 4.0, seamless connect with MES system.
- Build-in welding technical support. Data packages inside summary from our engineer experts.
- Simple operation design, user call the data from PC complete welding work without superb welding skills.
- Built-in welding process data storage, can store 100 sets of welding processes

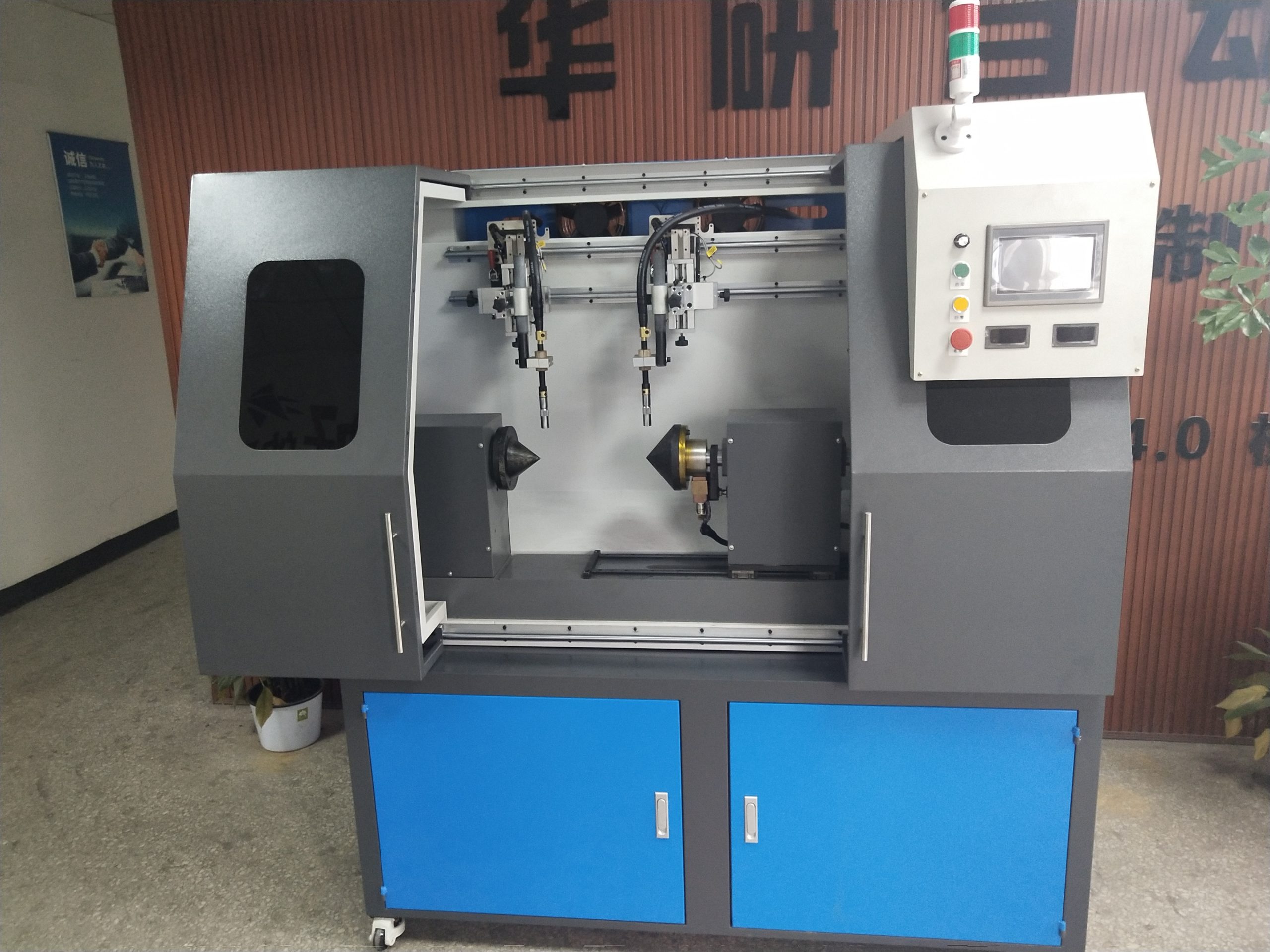

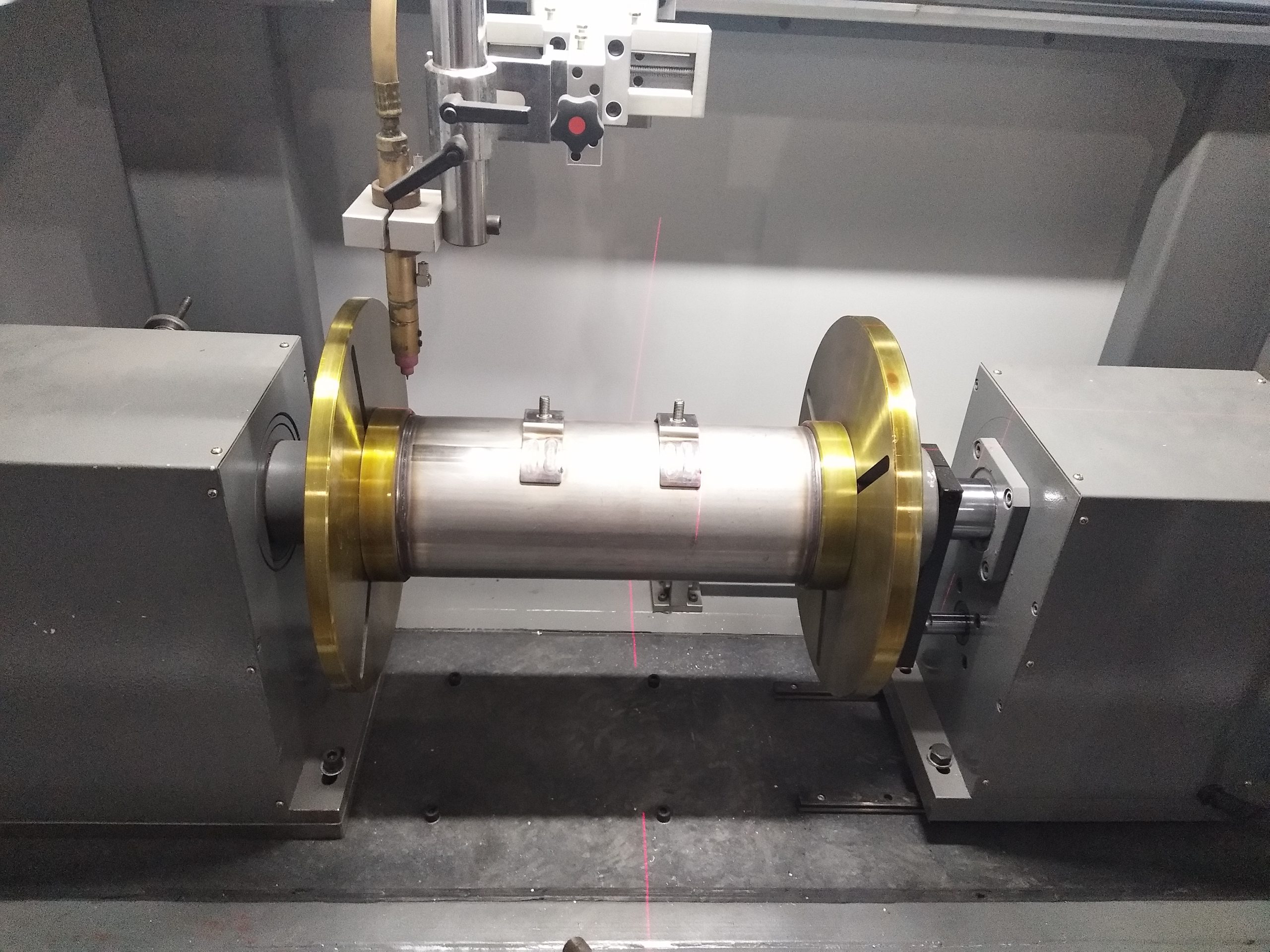

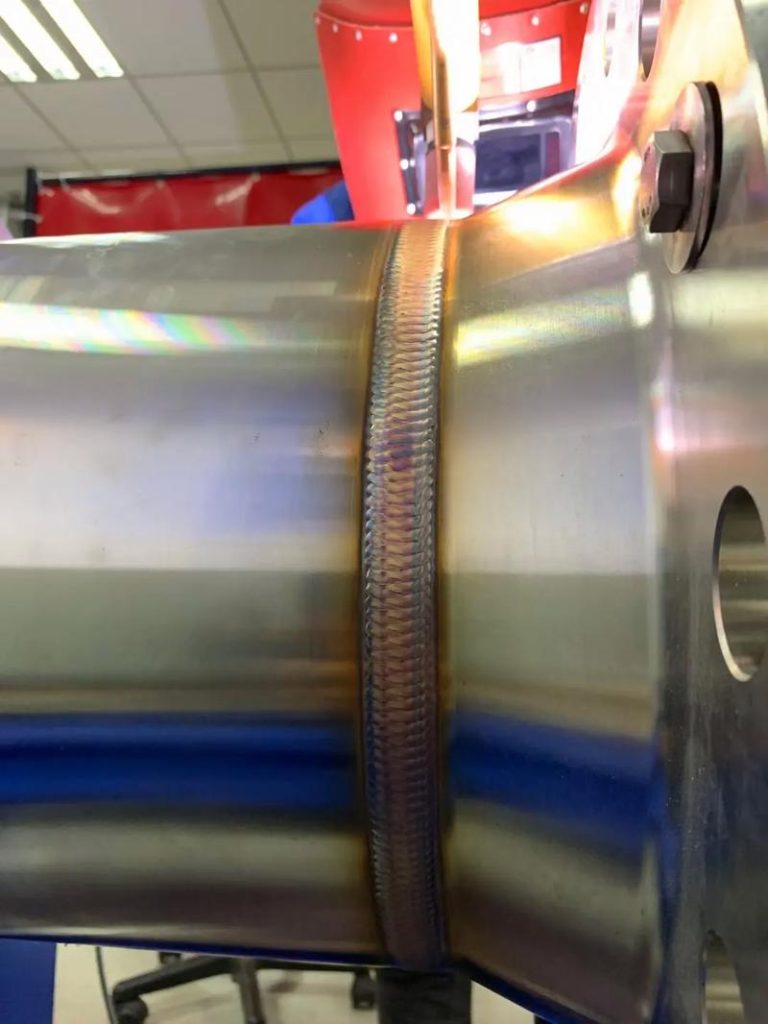

| Model Specifications | WS-4850-B1 |
| Clamping outer dia. | Φ10 – Φ520 mm |
| Welding function selection | Argon arc welding, argon welding with wire, gas shielded welding, laser welding, plasma spray welding |
| Pipe wall thickness | Standard configuration: ≥ 0.5mm Customizable for thin walls (e.g., bellows) Minimum weldable thickness: 0.2mm |
| Welding power source brand | Huayan welding machine / Panasonic welding machine / Huayuan welding machine / Aotai welding machine |
| Power supply type | Welding machine: 30KW / 380V / 50Hz Automatic welding control: 1.0KW / 220V / 50Hz |
| Radius of rotation | ≤ 260mm Main body: Casting material (Customizable, small range height adjustment available) |
| Workpiece length | Distance between power head and tail pushing device: 640mm Main body: Casting material (Customizable, small range lengthening available) |
| Positioner Power head | Horizontal rotation |
| Welding gun movement | 3D micro-adjustment + Pneumatic propulsion of welding gun Limited stroke: 100mm |
| Suitable for workpiece | High-precision girth welding of round workpieces (e.g., bellows, floats, sanitary pipe fittings) |
| Welding gun displacement angle | 3D fine adjustment (any position in 3D space) Options: Dovetail groove precision 3D fine adjustment / Optical axis precision 3D fine adjustment Effective adjustment range: 100mm × 100mm × 50mm |

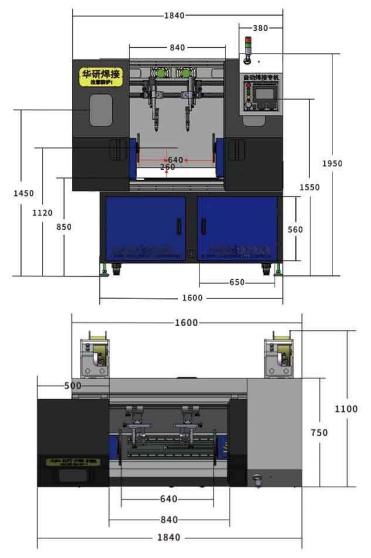

| Machine size | Length × Width × Height: 1840 × 750 × 1950 mm |
| Machine weight | 890 kg |
| Maximum load | Standard: 100kg (Optional: 200kg) |
| Controller | Multi-axis linkage CNC welding dedicated motion controller |
| Storage | 7 sets of welding process parameters |
| Height of rotation center from ground | 1120mm |
Optional Configurations:
| TIG welding wire feeder | CNC wire feeder (optional for TIG welding) Applicable wire diameters: 0.8 / 1.0 / 1.2 / 1.6 mm |
| Welding gun oscillator | Swing amplitude: 100mm Swing speed: 150mm/s Bevel dwell time: 0-9s |
| Mechanical Profiling Tracker | Cam-based tracking and profiling Tracking range: 0-100mm (customizable) Tracking speed: 0-10 levels Tracking accuracy: 0.1-0.3mm |
