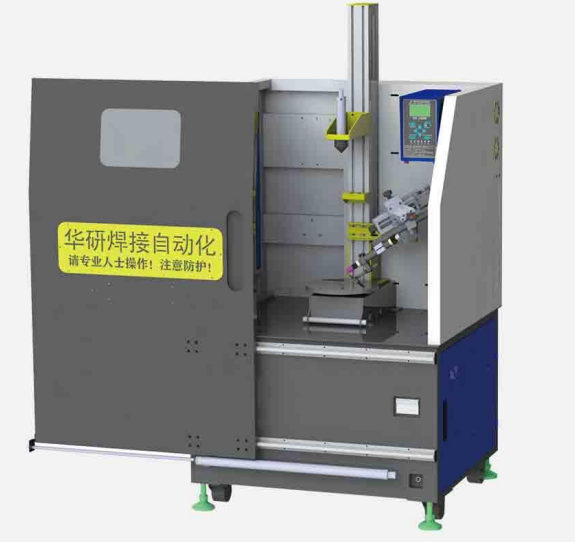

LS-4850A1 girth welding machine vertical headstock

LS / WS series automatic welding machine designed for workpieces required Girth welding, such as pipe sleeve welding, pipe-plate welding, pressure vessels welding, etc.

Features:

  1. high-efficiency and high-flexibility with Varity options for different budget auto weld solutions
  2. Online remote maintenance and troubleshooting, EtherCAT Industrial Ethernet Communication/4G loT.
  3. Smart phone application operation, and machine state monitoring available
  4. The equipment supports later upgrade and access to smart factory 4.0, seamless connect with MES system.
  5. Build-in welding technical support. Data packages inside summary from our engineer experts.
  6. Simple operation design, user call the data from PC complete welding work without superb welding skills.
  7. Built-in welding process data storage, can store 100 sets of welding processes
Model Specifications LS-4850A-1
Clamping outer dia. Φ10-Φ380
Welding function selection Argon arc welding, argon welding with wire, gas shielded welding, laser welding, plasma spray welding
Pipe wall thickness Normal configuration is not less than 0.5mm. Thin walls such as bellows can be customized. The thinnest thickness that can be welded is 0.2mm.
Welding power source brand Huayan welding machine/Panasonic welding machine/Huayuan welding machine/Aotai welding machine
Power supply type Welding machine 30KW/380V/50Hz Automatic welding control 1.0KW/220N/50Hz
Radius of rotation No more than 190mm (customizable)
Workpiece length The distance between the power head and the tail push is 800m (unlimited bonus)
positioner Power head Horizontal rotation
Welding gun movement 3D micro adjust + welding
gun pneumatic propulsion limited stroke 100mm
Suitable for workpiece economic solution for regular round workpieces, gas shielded welding & argon arc welding
Welding gun displacement angle With 3D fine adjustment, any position in 3D space
(with dovetail groove precision 3D fine adjustment, and optical axis precision 3D fine adjustment optional)
effective adjustment range 100m+100mm*50mm

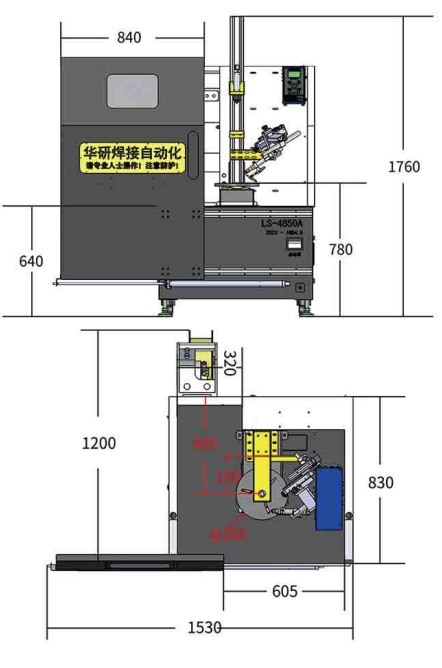

Machine size Length 1530 × width 1200 × height 1800 (mm)
Machine weight 450 kg
Maximum load 70kg
Controller Simple welding controller
Storage 20 welding processes
Height of rotation center from ground 780mm

optional:

TIG welding wire feeder CNC wire feeder as optional for arc welding. Applicable diameters are 0.8/1.0/1.2/1.6
Welding gun oscillator Swing amplitude: 100mm; Swing speed:
150mm/s Bevel dwell time: 0-9s
Mechanical Profiling Tracker Tracking and profiling by cam
Tracking range 0-100mm (can also be customized); tracking speed 0-10 levels; tracking accuracy 0.1-0.3mm
