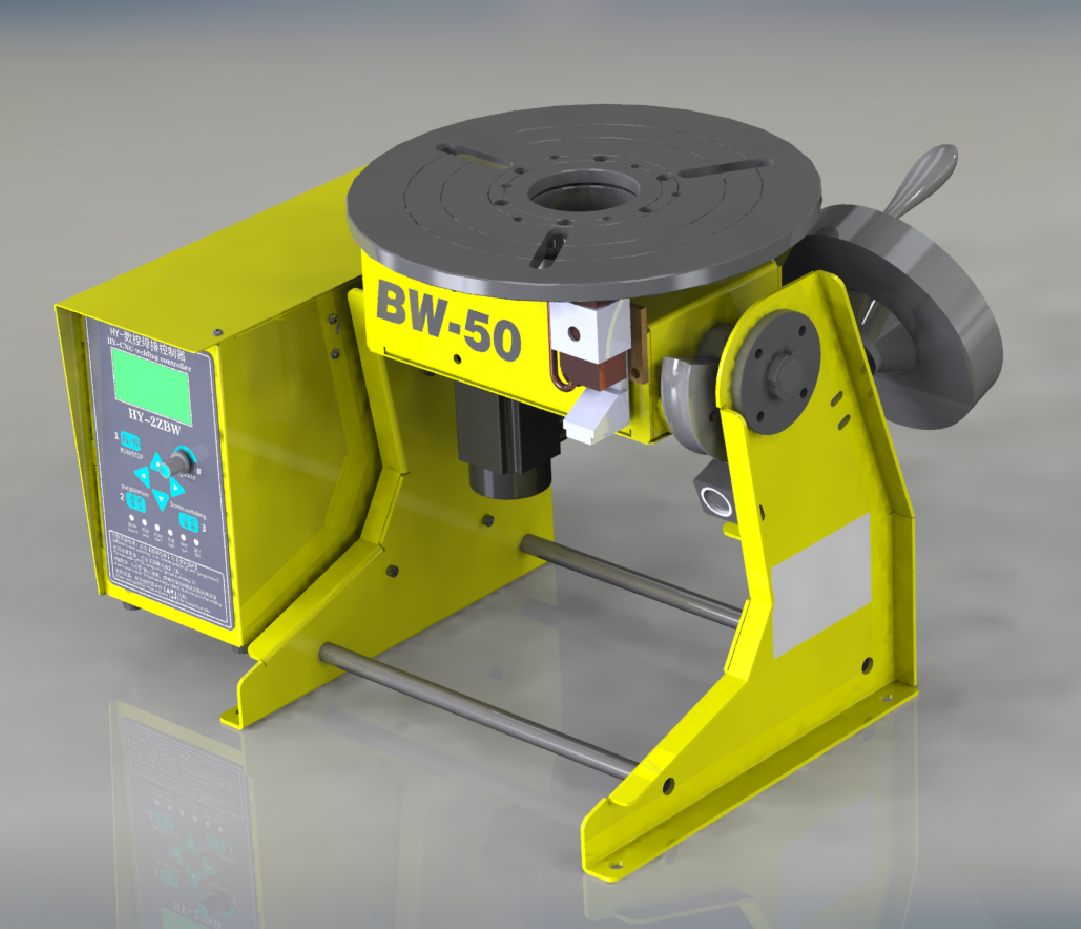

BW-50A1 Unversial positioner

Name: BW-50A1 Unversial positioner
Brand: HUAYAN WELD TECH CO.,LTD
Availability: InStock

unverisal positioner assists manual or semi-automatic work, not only welding

Modular designed with variety options for different workpieces.

With LCD micro-controller controlled

描述
用户评价 (0)

Specifications

BW-50A1

Load Capacity

BW-50: Load 50KG

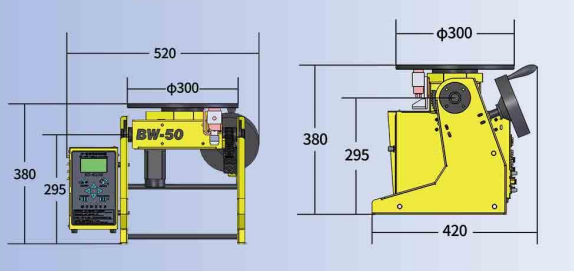

Workbench diameter

BW-50: Flange dia

Drive motor

57 Step motor 1.2

Through hole diameter

BW-50: Through hole 65mm

Workbench height

BW-50: height 380mm

Tilt Angle

0-90° adjustable position

Workbench speed

0.01-10rpm

Use occasions

Manual welding, cutting, polishing, painting

Standard

(BW-50A1) 50 kg welding positioner, 57 welding stepper motor, through hole 65mm;

Optional

1. Welding chuck (optional size) 2. Manual gun holder (with welding gun microadjust rack) 3. Pneumatic simple gun holder
4.Pneumatic precision 3D microadjust gun holder(with precision 3D microadjust rack)
5. Pneumatic tail top (the distance between the tail top can be adjusted up and down to ensure the concentric rotation of the workpiece)
6. Roller support frame (can provide support for longer workpieces)7. Welding seam oscillator (stepping drive, repeated positioning accuracy 0.04mm)
8. Argon welding cable feeder (stable and uniform wire feeding, sensitive wire withdrawal)
